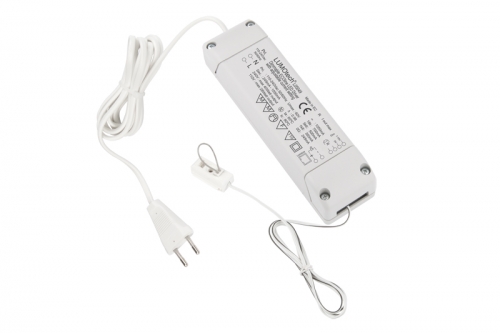

LEDdriver L05049NS 700mA EcoLine 1-10V
Features
Article code: KL876836 - Brand Klemko
- Very high power factor.
- 32/40 Watt LED Driver (depends on the input voltage).
- Pre-installed current of 700mA.
- Possibility to connect 18 LEDs in series.
- 1-10V dim input (Dimming range 25/100 %).
- Mains cord and Lumoluce connection box included.
- SELV-equivalent.
- Fourfold protection: Thermal, short circuit, over voltage and open circuit.
Specifications
| Type: | Constant current | ||
| Current output: | 250-1050 mA stabilized adjustable current source | ||
| Power output: | 230V:40W Max. / 110V:32W Max. | ||
| Voltage output: | 60V max. | ||
| Dimmable: | 1-10V / potentiometer (100K) | ||
| Weight: | 165gr | ||
| Size: | Ø157x42x32mm | ||
| Power factor (λ): | 0,98 at 230V 0,99 at 110V | ||
| Max. temperature (tc): | <80°C | ||
| Ambient temperature (ta): | -25 to +60°C | ||
| Classification: | II | ||
| Approvals: |
| ||
| Fourfold protection: | Thermal, short circuit, over voltage and open circuit |
