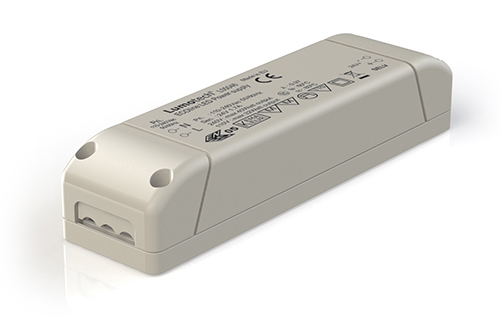

LEDdriver L05046 EcoLine 40W 24V
Features
Article code: L05046 - Brand Lumotech
- Very high power factor.
- An output power of 24V which is perfect for use with LED strips.
- 32/40 Watt LED Driver (depends on the input voltage).
- SELV-equivalent.
- Fourfold protection: Thermal, short circuit, over voltage and open circuit.
Please be aware that this driver is not suitable to use with the Lumoluce modules and LED spots.
This driver is specially developed for LEDs from other manufacturers.
Before using a driver always read the manual first which is included with the driver package
Specifications
| Type: | Constant current | ||
| Current output: | 1,7A max. | ||
| Power output: | 40W | ||
| Voltage output: | 24Vdc | ||
| Mains voltage: | 110/240V,50/60Hz | ||
| Dimmable: | No | ||
| Weight: | 160gr | ||
| Size: | Ø156x42x32mm | ||
| Power factor (λ): | 0,97 at 230V, 0,99 at 110V | ||
| Max. temperature (tc): | 80°C | ||
| Ambient temperature (ta): | -25 to +60°C | ||
| Approvals: |
| ||
| Fourfold protection: | Thermal, short circuit, over voltage and open circuit |
