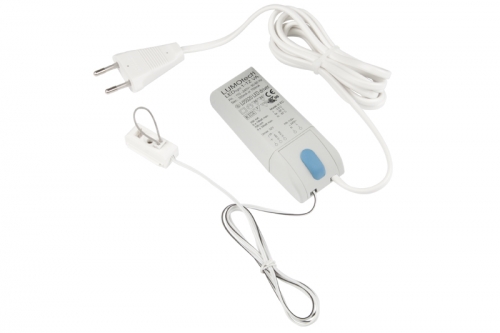

LEDdriver L05020NS 1-12VA 350mA or 700mA
Features
Article code: KL876800 - Brand Klemko
- High power factor.
- To use with LEDs without internal current regulation only.
- Mains cord and Lumoluce connection box included.
- SELV-equivalent.
- Fourfold protection: Thermal, short circuit, over voltage and open circuit.
Before using a driver always read the manual first which is included with the driver package!
Specifications
| Type: | Constant current | |
| Current output: | 350 mA or 700 mA | |
| Power output: | 12W | |
| Dimmable: | No | |
| Weight: | 170gr | |
| Size: | Ø99x39x23,5mm | |
| Power factor (λ): | 0,9C | |
| Max. temperature (tc): | < 80°C | |
| Ambient temperature (ta): | -20 to +50°C | |
| Approvals: | CE | |
| Fourfold protection: | Thermal, short circuit, over voltage and open circuit |
