Lugano Spacer LED surface mounted - Chainlight Lighting Systems

Lugano Spacer / Lugano LED

Article code: L935115 and KL876622 - Brand Lumoluce & Klemko

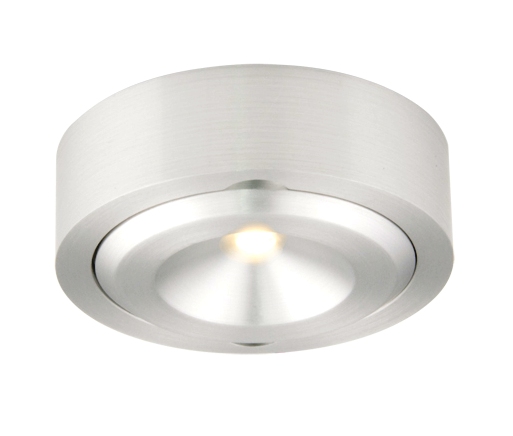

The Lugano Spacer provides the possibility to mount the Lugano LED Spot on the surface instead of cutting a hole to fit it.

The Lugano LED spot is available in 3 different light colours and features an anodized aluminium finish.

This spot has wide beam angle and is therefore ideal to illuminate surfaces from close range.

It is often used under cabinets and in kitchen hoods.

	Lumoluce "Click & Go" connection system
	Ideal for illuminating close range
	Power:	2,3W
	Dimmable:	Yes, with a Lumotech dimmable driver
	Weight:	N/A
	Size:	Ø64mmx12mm
	Material:	Anodized Aluminium
	Current:	350mA to 700mA max.
	Wide beam angle:	90°
	Expected lifetime:	50.000H / 70%
	Classification:	III
	IP:	20
	Mounting:	Surface
	Forward voltage:	3,3V
	Max. temperature (tc):	50°C
	Ambient temperature (ta):	-20ºC to 35°C
	Spacer
	Size:	Ø60mmx18mm
